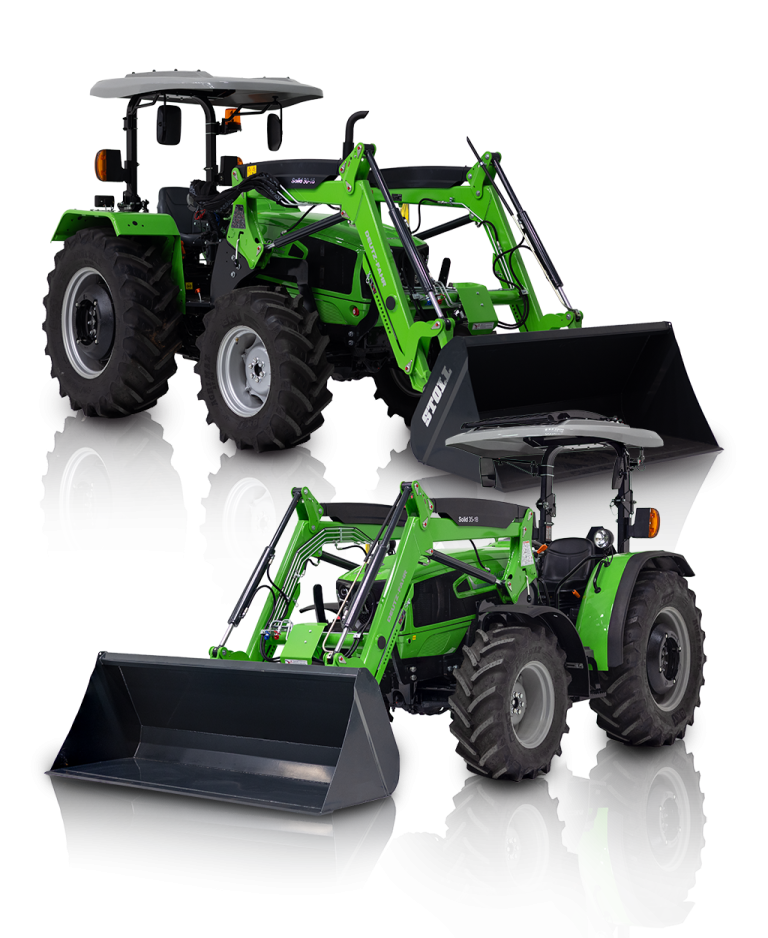

The 4 Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical.
FARMotion 2.9 liter, 3-cylinder diesel engine from Deutz-Fahr – 65-80 horsepower
Tier 4 emissions-compliant engine with “No Maintenance” emissions system: No SCR, No DPF
Power Shuttle transmission w/ sensitivity adjustment (4080 GS) and Comfort Clutch (acts as electric clutch on gear lever) / Mechanical synchro shuttle (4065), both with large 12” clutch
4wd front axle with integrated front axle brakes on the 4080
4080 GS with wet clutch electronic engagement rear PTO with 13.2 gpm hydraulic flow; 4065E manual hand-lever engagement dry clutch, 540 RPM
Up to 13.2 gpm hydraulic flow on the 4080 (8.1 gpm on the 4065); 2 rear remote valves standard
Rear 3-point hitch with up to 5,500 lb lift capacity on the 4080 (3,500 lb on the 4065); mechanical control
Large, semi-flat platform; steel hood and fenders; rubber floor mat; 2-post folding ROPS
Entry from both sides, suspended vinyl seat
76.8 - 82.6 inch wheelbase, 5,500 - 6,600 lb base weight, up to 10,550 lb max. permissible weight
Large, open semi-flat platform with entry on either side, suspended seat and folding ROPS
Rubber floor mat reduces noise, large steel fenders and front mud guards keep the operator clean
Full-featured tractor has controls within easy reach of the operator
The spacious platform features a rubber covered semi-flat floor and try from either sides. Large steel rear fenders and front mud guards keep the operator clean
Folding ROPS and a suspended vinyl seat with seat belt improve safety and comfort. Adjustable steering column (4080E models) also makes driving more comfortable.
The digital and analog front dash keeps the operator informed. Transmission levers and push button controls are positioned around the tractor for easy reach and operation.
Forward work lights int eh front hood, and a rear work light at the back of the tractor allow for working at night. 7-pin trailer socket and ROPS-mounted rear view mirrors are standard equipment.
Power and performance with lower fuel consumption – something that Deutz Fahr engines are known for…
State-of-the-art design and manufacturing techniques promote industry-leading reliability.
| Tractor Model | 4065/4080 |
|---|---|
| Engine | FARMotion |
| Rated / Gross Horsepower | 65-75 / 65-80 |
| Cylinder Displacement | 2.9 liter, 3 cylinder |
| RPM at Rated / Gross Power | 2200 / 2000 |
| Max. Torque | 215 - 252 lb-ft @ 1600 RPM |
| Fuel Capacity | 14.5 - 19.8 gallons |
The single-piece hood opens widely for full engine access. Steel hood construction offers a long service life. 14.5 to 19.8 gallon fuel tank under hood.
Single speed engine memory button allows the operator to program a specific engine speed, and then recall that speed instantaneously with a press of the button.
The single-piece hood opens widely for full engine access. Steel hood construction offers a long service life. 14.5 to 19.8 gallon fuel tank under hood.
Single speed engine memory button allows the operator to program a specific engine speed, and then recall that speed instantaneously with a press of the button.
The right transmission for any operating profile and the right speed for any work – you can meet any challenge with the new 4 Series.
Power Shuttle w/sensitivity adjustment (4080 GS) and Mechanical Synchronized Shuttle (4065) transmission provide convenient shifting from forward to reverse.
Large Wet Clutch (4080 GS) and Dry Clutch (4065) with a diameter of 12 inches provide greater surface area, enabling peak performance and long service life.
4065 with 12 x 12 Speed transmission includes 3 ranges with 4-speed synchronized main gearbox to provide the most efficient operating speed.
4080 GS, standard with Comfort Clutch, comes with a 15 x 15 Speed transmission consisting of a 3 range, 5-speed synchronized main gearbox. This provides precise gear selection with optimal speeds within ranges to prevent range shifts during fieldwork requiring various ground speeds.
New Stop & Go (4080 GS) provides efficient operation, allowing the operator to press the brakes to stop, without clutching, and to resume to the prior selected speed as the brakes are depressed.
Heavy Duty Construction
Differential Lock
540 RPM Rear PTO Speed
Hand Lever Engagement
Heavy Duty Axle Design
4 Wheel Drive
Integrated Front Axle Brakes
