Overview

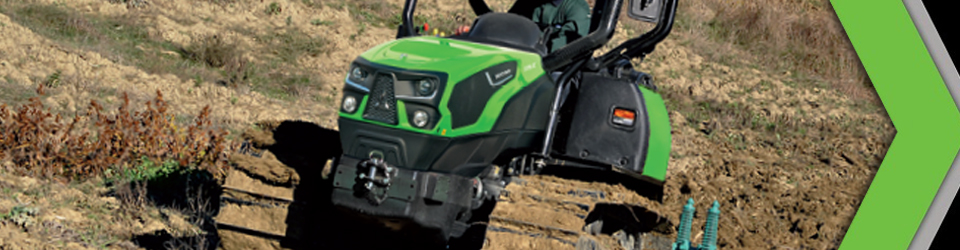

Four new models for working in complete safety even in the toughest conditions. Whether used for specialized tasks in the vineyard or for forestry applications, the new Crawler tractors of the 5KF Series are the perfect answer to any need. Up to six oil-lubricated rollers and tracks with up to 40 segments distribute the weight of the 5KF tractor evenly in any terrain conditions.

5KF versions are also available with the superlative new ComfortTrack track chain, for class-beating stability and comfort and extraordinary soil protection. These Crawler tractors boast a revolutionary new design. The single-piece cowl with center-mounted headlamps allows unimpeded access to all parts subject to maintenance and combines an attractive, modern style with superlative functionality.

FARMotion 2.9 liter, 3-cylinder diesel engine from Deutz-Fahr – 80 gross engine horsepower

Tier 4 emissions compliant engine with “No Maintenance” emissions system: No SCR, No DPF

Mechanical synchro shuttle with large 12″ diameter dry disc clutch

4wd front axle with integrated front axle brakes

540 RPM rear PTO with dry clutch, manual hand-lever engagement (LD, MD, HD)

Operator Area

FOR THE BEST POSSIBLE PERSPECTIVES AT WORK

The new 5 KF Series combines extraordinary driver comfort with intuitive controls. The driver's platform, which is suspended on silent blocks, absorbs all vibrations. A seat with mechanically sprung suspension keeps the driver comfortable even after hours at work. Four work lights offer excellent visibility.

The 5080 KF Crawler may also be equipped with a choice of factory-fitted cab accessories, such as an A/C compressor, heating pipes, an powerful AC generator and a number of other electrical accessories. (Contact your local dealer for more information on cab options.)

A PLEASANT SEAT FOR EVERYONE

Tall drivers, short drivers, slim drivers, well-built drivers, long arms and legs, short arms and legs – especially when it comes to extremely compact specialist tractors, designing the interior is a major challenge. The development team at DEUTZ-FAHR have overcome these difficulties with flair. Every driver can find the perfect working position in the new specialist tractors.


Engine

MAXIMUM EFFICIENCY IN A COMPACT UNIT

Under the all-new hood of this tractor is an extremely compact 3-cylinder FARMotion engine (compliant with Tier III B emissions regulations). Developed specifically for agriculture and with an optimized unitary cylinder capacity, these engines feature Common Rail electronically controlled fuel injection and an exhaust aftertreatment system with EGR (exhaust gas recirculation) and DOC (diesel oxidation catalyst) to deliver class-beating performance and constant torque right from the bottom of the rev range. Fuel consumption, emissions, vibrations and the noise level are extremely low.

The compact cooling pack is also new, with an engine radiator with a larger heat exchange surface area, an intercooler, a fuel cooling system and an optimized cooling cowl with viscostatic fan, while the air intake system includes a two-stage PowerCore air filter with dust ejector. Both the cooling and intake systems contribute to increasing engine efficiency and are specifically designed to ensure extended service intervals and for simple, quick maintenance.
The large fuel tank is specifically shaped to ensure uninterrupted fuel delivery even when working on steep gradients.

Tier 4 Final - Simply and Reliably

At 75-rated hp (80 max) the 5080 KF Crawler is Tier 4 final capable with no Diesel Particulate Filter (DPF) and without the use of a an exhaust fluid additive (SCR). That means you can rely on your tractor to operate reliably without worry about regeneration, filters or additional fluids. It doesn't get any simpler than the proven powertrain of an 5080 KF Crawler.

FARMotion Engine

The FARMotion family of engines is the result of nearly 100 years of engine production for specialty tractor applications. Today's FARMotion engine is our most powerful, responsive, efficient and reliable engine ever.

Tier 4 Final - Simply and Reliably

At 75-rated hp (80 max) the 5080 KF Crawler is Tier 4 final capable with no Diesel Particulate Filter (DPF) and without the use of a an exhaust fluid additive (SCR). That means you can rely on your tractor to operate reliably without worry about regeneration, filters or additional fluids. It doesn't get any simpler than the proven powertrain of an 5080 KF Crawler.

FARMotion Engine

The FARMotion family of engines is the result of nearly 100 years of engine production for specialty tractor applications. Today's FARMotion engine is our most powerful, responsive, efficient and reliable engine ever.

Transmission

Two mechanical transmission variants are offered: a simple 12+12 speed transmission with creeper gear for ground speeds from 380 m/h to 10.5 km/h (5 KM model) or from 430 m/h to 11.8 km/h (5 KF model), and a 16+16 speed transmission with overdrive for a range of ground speeds from 1.32 km/h to 12.5 km/h (5 KM model) or from 1.50 km/h to 14.2 km/h (5 KF model).

Rear Axle

Find More Information

Heavy Duty Construction

  • Solid cast steel design from ZF®
  • Power-assist hydraulic wet brakes
  • Planetary final drives isolated in heavy gear oil
  • Push button diff. lock

Separate Fluid Reservoirs

  • Hydraulic oil is separate from transmission oil
  • No cross-contamination
  • Low hydraulic oil does not affect transmission lubrication
  • Sight glass check of transmission fluid

Dual Wheel Capable

  • Bolt-on bar axle adapters

Electronic Park Brake (EPB)

PTO

Find More Information

4 Rear PTO Speeds

  • 540/540E/1000/1000E RPM speeds
  • Push button speed selection
  • Interchangeable flange-type PTO shaft

Push Button Engagement

  • 2-stage button in cab
  • Rear fender button
  • Heavy duty wet disc clutch at rear

Front PTO Available

  • 1000 RPM speed
  • Mechanically driven
  • Push button engagement

Drive System

Find More Information

Suspended Front Axle

  • Manufactured by Dana
  • Solid axle bean in suspended cradle
  • Hydraulic suspension control

Maximum Performance

  • Fully locking front differential
  • Push button 4wd engagement
  • Auto 4wd and diff. lock system
  • 50 degree steering angle

Hydraulics

A comprehensive, high performance and simple to use hydraulic system - what more could you want?
Standard hydraulic system on the V & F is 16.9 gpm

From vineyards to orchards, from tilling the land to tending and harvesting crops, and from municipal winter service to road and site maintenance – versatility and adaptability is a strength of the new DEUTZ-FAHR specialist tractors. With up to 6,160 lb lift capacity at the rear and 3,300 lb at the front, all possible combinations of equipment can be easily moved. The rear power lift can be electronically controlled if desired. For all 5DV and 5DF models, two separate hydraulic circuits provide a full flow rate for operating equipment, power lifts and tractor functions.
